Renogy 1.8kW/1.9kW/2.2kW Advanced Plus Kit

Description

• 2.5kW latest generation high-efficiency PERC panels
• All-in-one Lycan 5000 power box with plug and play Installation
• 4.8kWh additional power, for a massive 9.6kWh of power storage
• DC circuit protection
• Bluetooth/Wi-Fi monitoring and smart plugs automations

Specifications

1.8kW (Total 4 Pieces Bifacial 450 Watt)

Bifacial 450 Watt Monocrystalline Solar Panel

• Max Power at STC: 450W
• Open Circuit Voltage: 41.25V
• Short Circuit Current: 13.89A
• Optimum Operating Voltage: 34.67V
• Optimum Operating Current: 12.98A
• Maximum System Voltage: 1500VDC
• Maximum Series Fuse Rating: 30A
• Module Efficiency: 20.8%
• Operating Temperature: -40°F~185°F / -40℃~85℃
• Dimensions: 1909 x 1134 x 35mm/75.2 x 44.8 x 1.4in
• Weight: 23.1kg / 50.9lbs

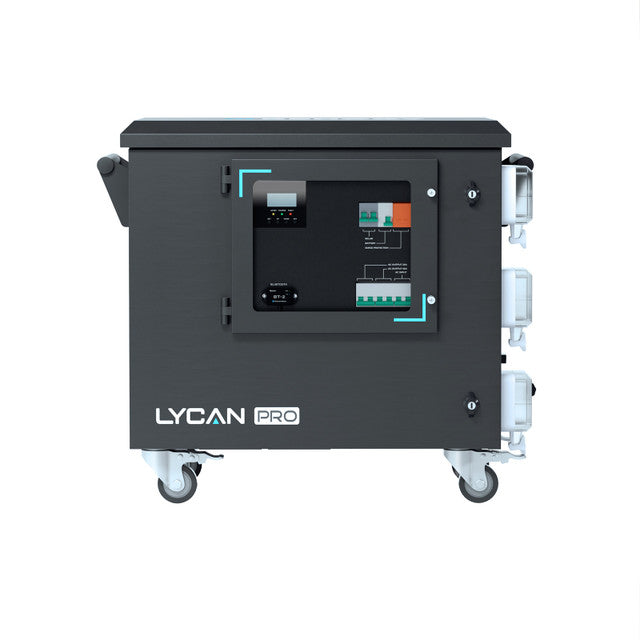

Renogy Lycan

• Protection Rating: IP55
• Cooling Method: Fan
• Operating Temperature Range: 14°F~122°F / -10°C~50°C
• Operating Relative Humidity Range: 5%~95%
• Expansion Connector: Anderson 120A Connector, RJ45 Female Connector
• Expansion Capability: 19.2KWh
• Self Consumption: 25W (Power Saving Mode)
• Bluetooth Module: DC Home APP. Communication Range 82 ft. / 25 m
• Installation Environment: Indoor/Outdoor
• Dimension: 32.9 x 20.0 x 28.5 inch / 835 x 508 x 724 mm
• Weight: 264.6 lbs. / 120 kg

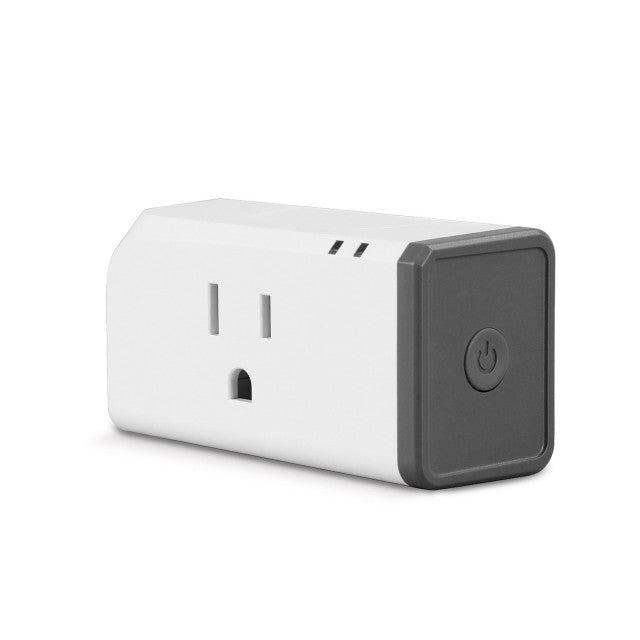

Renogy Smart Plug

• Input /Output Voltage: 120V AC 60Hz
• Casing Material: PC V0
• Max. Load: 15A / 1800W
• Security Mode: WPA/WPA2
• Connection: Zigbee 3.0 (IEEE 802.15.4)
• Operating Temperature Range: 14 ℉ to 104℉ / -10 ℃ to 40℃
• Applicable Environment: Indoor
• Dimension: 2.99 x 1.57 x 1.30 in (76 x 40 x 33 mm)
• Weight: 0.17lbs / 79g

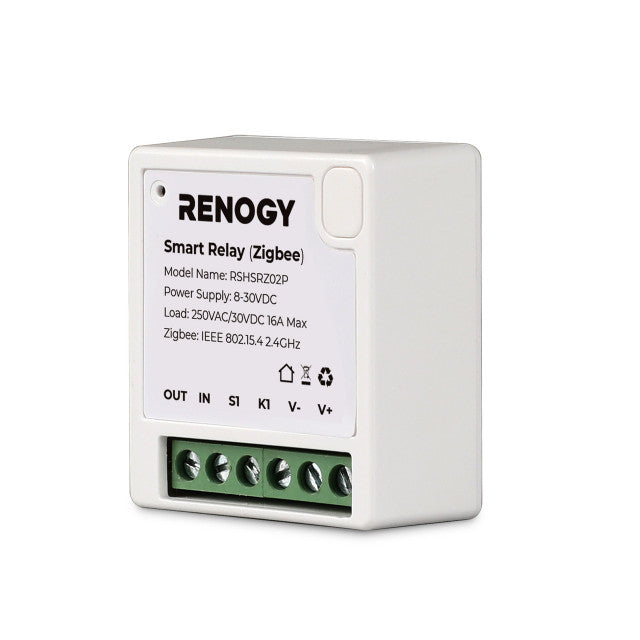

Renogy Smart Relay

• Power Supply: 8-30V DC
• Load: 250V AC / 30V DC, 16A Max
• Casing Material: PC V0
• Connection: Zigbee 3.0 (IEEE 802.15.4)
• Security Mode: WPA / WPA2
• Applicable Environment: Indoor
• Operating Temperature Range: -4℉ to 104℉/ -20℃ to 40℃
• Dimensions : 0.79 x 1.57 x 1.73 in / 20 x 40 x 44 mm
• Weight: 0.08 lbs/36.6 g

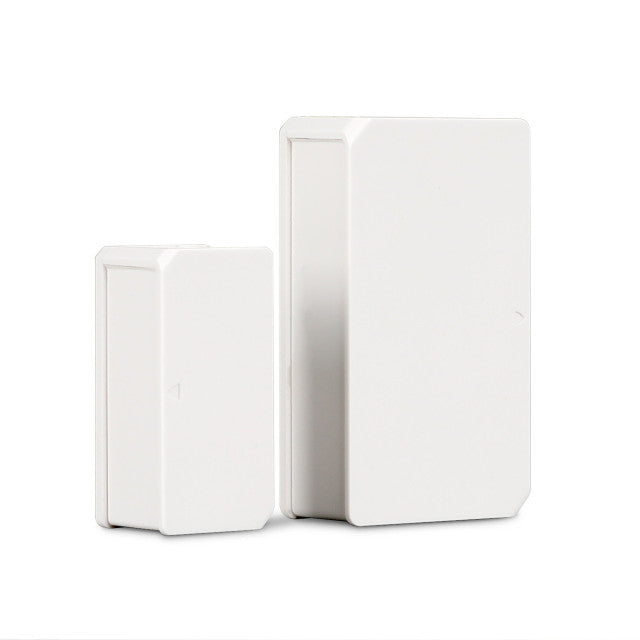

Renogy Door & Window Sensor

• Connection: Zigbee 3.0 (IEEE 802.15.4)
• Applicable Environment: Indoor
• Casing Material: PC V0
• Security Mode: WPA / WPA2
• Operating Temperature Range: 14℉ to 104℉/-10℃ to 40℃
• Dimensions: 1.85 x 1.06 x 0.53 in (47 x 27 x 13.5 mm)
• Weight: 0.04 lbs/20 g

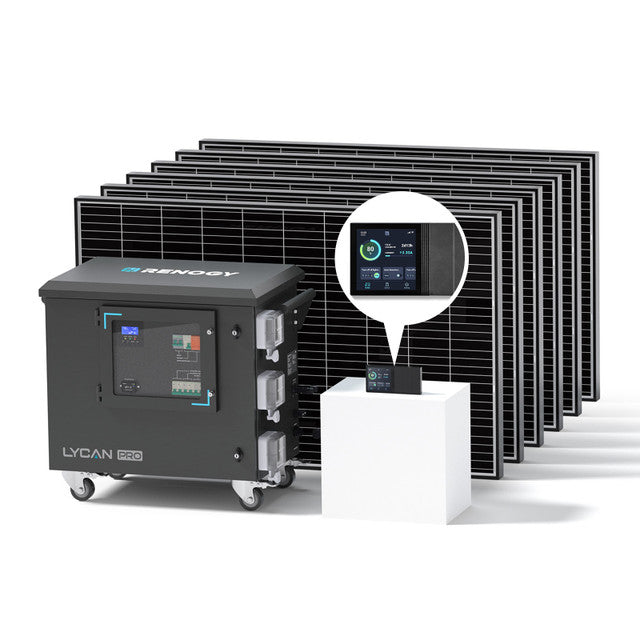

1.9kW (Total 6 Pieces 320 Watt)

320 Watt Monocrystalline Solar Panel

• Maximum Power at STC: 320W
• Optimum Operating Voltage (Vmp): 33V
• Open-Circuit Voltage (Voc): 40.3V
• Optimum Operating Current (Imp): 9.7A
• Short-Circuit Current (Isc): 10.23A
• Operating Temperature: -40°F to 185°F
• Cell Efficiency: ≥22%
• Maximum System Voltage: 1000V DC (UL)
• Maximum Series Fuse Rating: 15A
• Weight: 39.7lbs
• Dimensions: 65.6 x 39.4 x 1.4 in
• Certifications: CE, ISO, UL

Renogy Lycan: See Above

Renogy Smart Plug: See Above

Renogy Smart Relay: See Above

Renogy Door & Window Sensor: See Above

Warranty: See Above

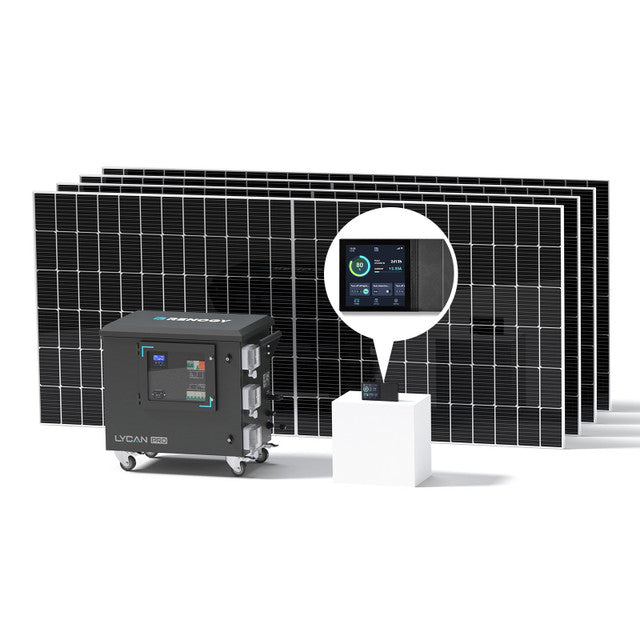

2.2kW (Total 4 Pieces Bifacial 550 Watt)

Bifacial 550 Watt Monocrystalline Solar Panel

• Max Power at STC: 550W
• Open Circuit Voltage: 49.95V
• Short Circuit Current: 14.05A
• Optimum Operating Voltage: 41.97V
• Optimum Operating Current: 13.11A
• Maximum System Voltage: 1500VDC
• Maximum Series Fuse Rating: 30A
• Module Efficiency: 21.3%
• Operating Temperature: -40°F~185°F / -40℃~85℃
• Dimensions: 2279x1134x35mm/89.72x44.65x1.38in
• Weight: 58.4lbs

Renogy Lycan: See Above

Renogy Smart Plug: See Above

Renogy Smart Relay: See Above

Renogy Door & Window Sensor: See Above

Warranty: See Above

Kit Includes

Renogy 1,8kW Advanced Plus Kit

• 2 x 2 Pieces Bifacial 450 Watt Monocrystalline Solar Panel
• 2 x 40ft 10AWG Solar Panel Extension Cable with Male to Female Solar Connectors (Single)
• 1 x Lycan 5000 Power Box

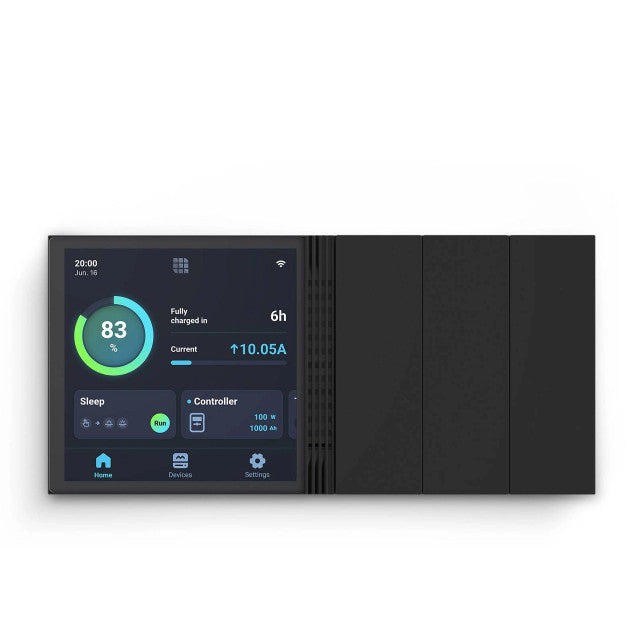

• 1 x Renogy One M1
• 1 x Renogy Smart Plug
• 1 x Penogy Smart Relay
• 1 x Renogy Door & Window Sensor

Renogy 1.9kW Advanced Plus Kit

• 3 x 2 Pieces 320 Monocrystalline Solar Panel
• 2 x 40ft 10AWG Solar Panel Extension Cable with Male to Female Solar Connectors (Single)
• 1 x Lycan 5000 Power Box
• 1 x Renogy One M1
• 1 x Renogy Smart Plug
• 1 x Penogy Smart Relay
• 1 x Renogy Door & Window Sensor

Renogy 2.2kW Advanced Plus Kit

• 2 x 2 Pieces Bifacial 550 Watt Monocrystalline Solar Panel
• 2 x 40ft 10AWG Solar Panel Extension Cable with Male to Female Solar Connectors (Single)
• 1 x Lycan 5000 Power Box
• 1 x Renogy One M1
• 1 x Renogy Smart Plug
• 1 x Penogy Smart Relay
• 1 x Renogy Door & Window Sensor
