12V 100Ah Core Series Deep Cycle Lithium Iron Phosphate Battery

Description

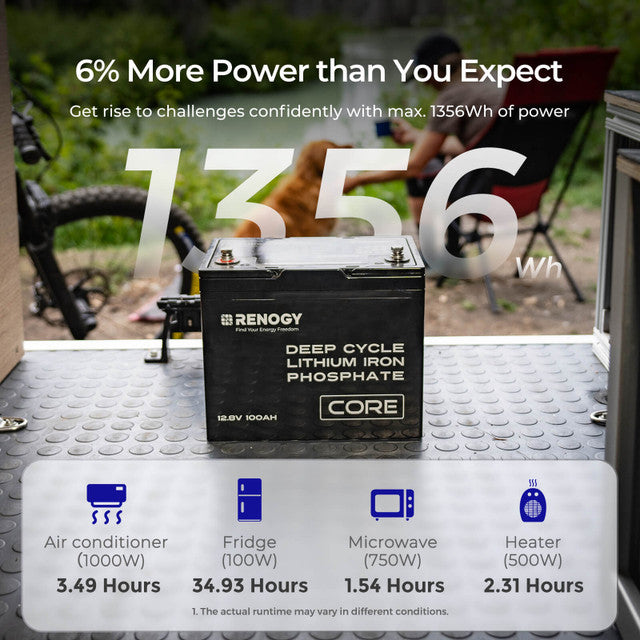

• Get max. 6% more power than rated capacity.

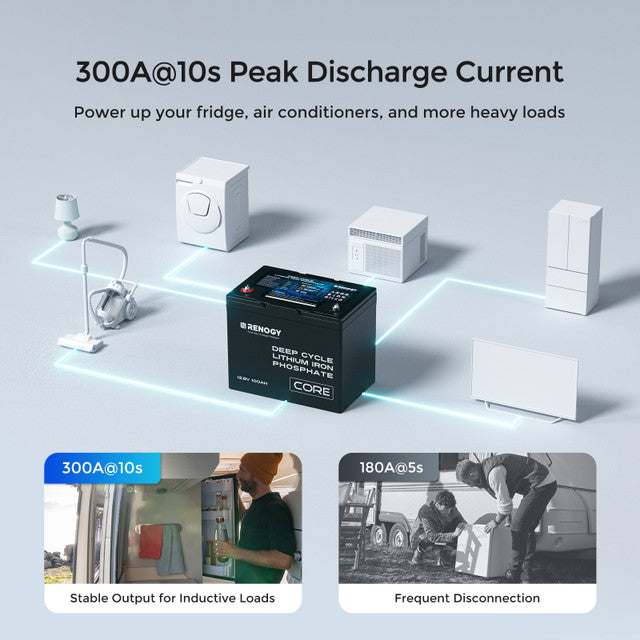

• 300A@10s peak output to start heavey loads.
• Support series, parallel, or series-parallel connections.

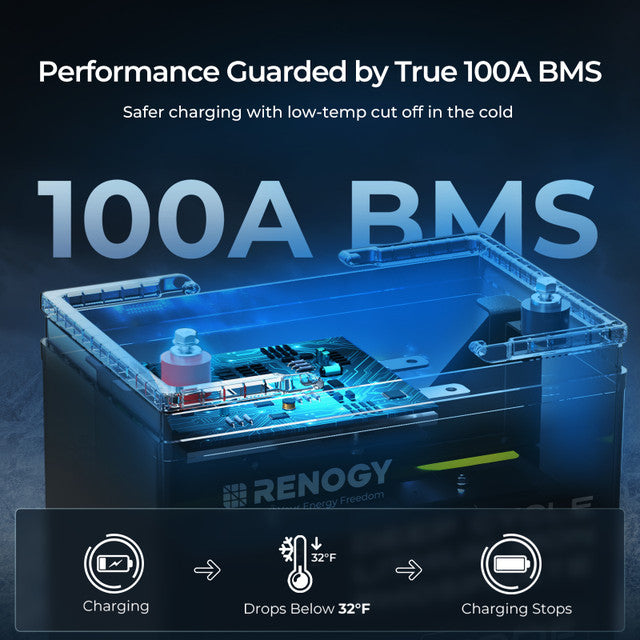

• A true 100A BMS with low-temperature cut-off.
• 5-year limited warranty & 24-hour timely assistance.

Specifications

Electrical Specifications

• Battery Type: Lithium Iron Phosphate
• Rated Capacity (0.5C, 25°C): 100Ah
• Voltage: 12V
• Cycle Life (0.5C/1C, 25℃): 5000 Cycles (80% DOD, 80% EOL)

Charging Parameters

• Charge Voltage: 14.4V
• Maximum Charge Current: 100A
• Maximum Discharge Current: 100A
• Charge Temperature Range: 32°F to 131°F (0°C to 55°C)
• Discharge Temperature Range: -4°F to 140°F (-20°C to 60°C)

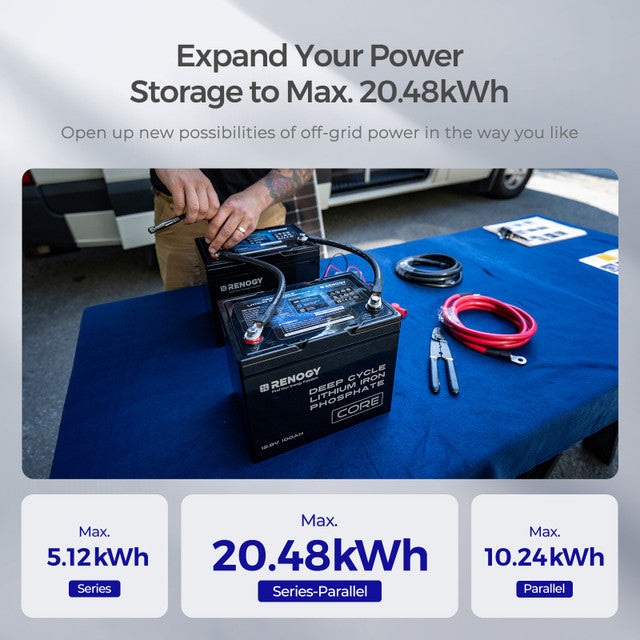

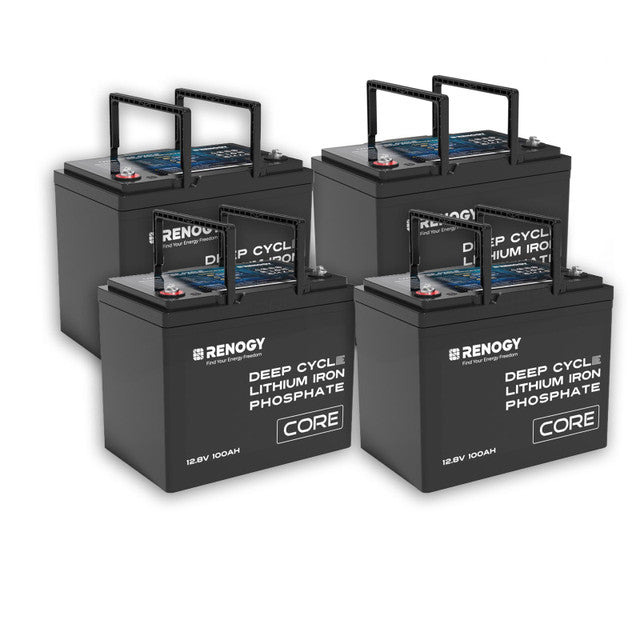

• Connection Method: "Series (Up to 4);Parallel (Up to 8); Series & Parallel (4P4S)"
• Communication Protocol: N/A
• Recommended Terminal Torque: 10 N·m
• Protection Rating: IP65
• Housing Material: ABS
• Terminal Bolt Size: M8

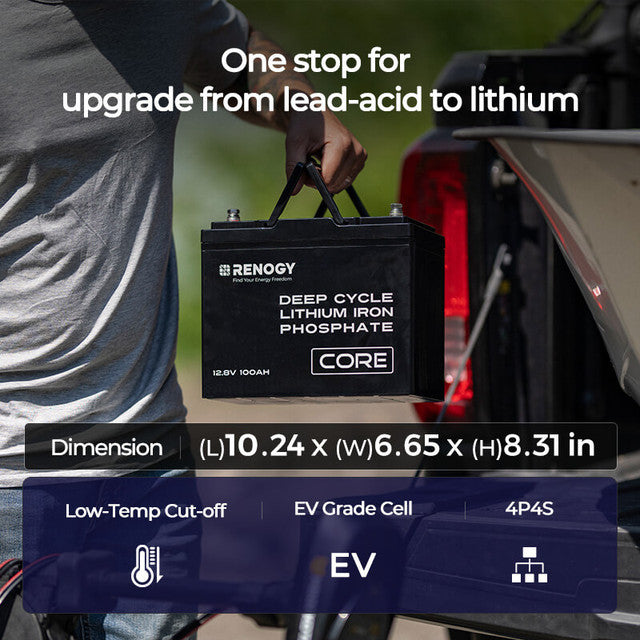

• Dimensions: 10.24 x 6.65 x 8.31 in (260 x 169 x 211 mm)
• Weight: 23.15 lbs. (10.5 kg)

Accessories

• Long Terminal Bolts (2): M8

Certifications

• MSDS, UN38.3, FCC , PSE, CE, UKCA, IEC62619: YES

Warranty

• Material and Workmanship Warranty: 5 Years
