12V 20A AC-to-DC LFP Portable Battery Charger

Description

• This battery charger is designed for lithium batteries. When the lithium battery triggers the low temperature/low voltage while charging, the BMS will turn on the protection, which means the lithium battery cannot be charged and needs to be activated. This charger provides a lithium battery activation function that quickly exits the protection mode and recharges. Along with CE and UKCA certification, it provides a safe and stable AC charging environment.

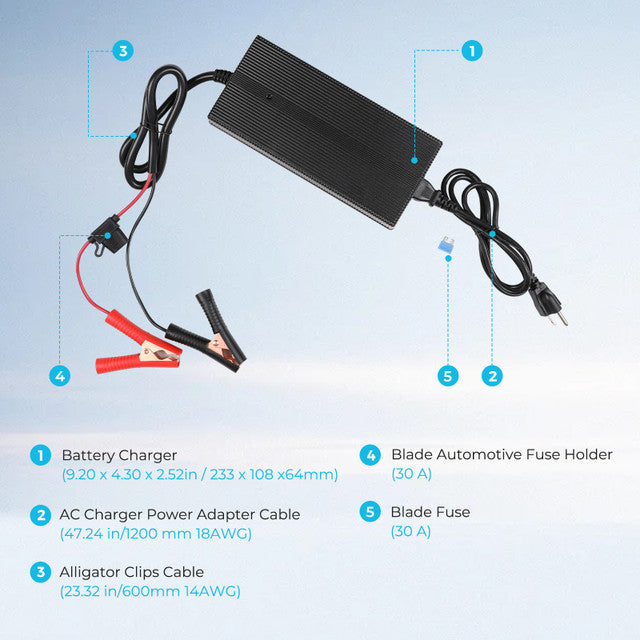

• This battery charger has a wide AC input voltage range, 100-240 VAC 50/60Hz, which is compatible with various needs. The charger comes with one battery charging cable, the alligator clips suggested for short-term use. Rich wiring design to match different needs allows users to quickly establish the connection between the battery and the charger.
• The charger has a 3-stage intelligent charging design: high current (cc), constant voltage (cv), trickle. It can accurately identify battery voltage and automatically switch charging mode and provide fast and efficient charging for lithium batteries; the charger's efficiency can reach up to 92%.
• The charger has six built-in protection functions to ensure charging safety, including short-circuit protection, over-current protection, over-temperature protection, over-voltage protection, under-voltage protection, and reverse polarity protection. The charger's indicator light can remind the wrong charging status and achieves all-round monitoring and protection.
• Just plug and play operation to quickly establish the battery and charger connection. The product uses a patented plastic profile design, and the shell itself can achieve rapid heat dissipation. The fanless design brings users a zero-noise charging experience and reduces concerns about the installation angle and space of the product.

Specifications

Charger

• Model: RBC20A1P
• Terminal Size: 14 AWG
• Operating Temperature: -20°F~113°F /-29°C~45°C
• Storage Temperature: -40°F ~ 167°F / -40°C ~ 75°C
• Humidity: 90%~95% RH
• Enclosure Rating: IP20
• Dimensions (LxWxH): 9.20x 4.30 x 2.52 inch / 233 x 108 x 64 mm
• Weight: 3.8 lbs/ 1.7kg
• Regulatory and Safety Specifications: UKCA,CE,CB,PSE

• Rated Input Voltage: 100-240 VAC 50/60 Hz
• Battery Input Voltage Range: 11VDC~16VDC
• Rated Charge Current: 20A
• Maximum Charge Power: 340 W (12V Battery)
• Self Consumption: 50 mA
• Charger Preset: Lithium-iron Phosphate

Warranty Information

• 2-year material warranty
