Renogy 12V/24V IP67 50A DC-DC Battery Charger with MPPT
$329.99
Taxes included.
Description
Description
Description

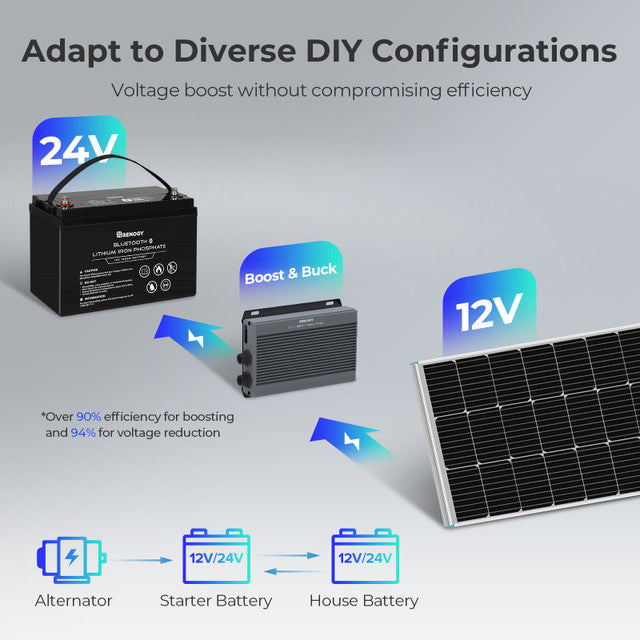

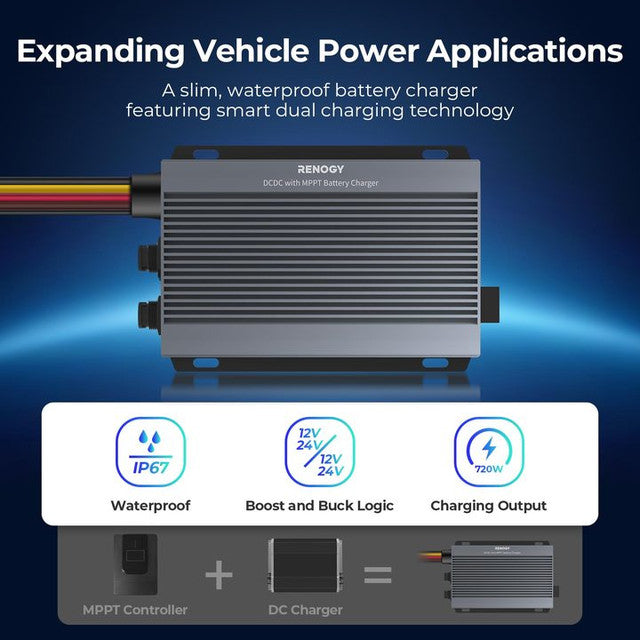

- A dual charging solution with 12V/24V boost and buck logic.
- Compact & lightweight with IP67 waterproof rating.

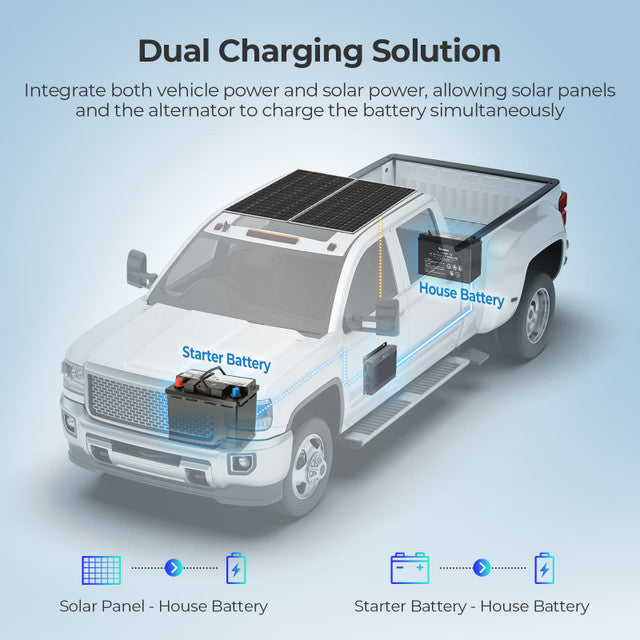

- Auto-switching charging mode while prioritizing green power.
- CE, FCC, RoHS certified with comprehensive test reports.
- Bluetooth Energy Monitoring with wired CAN communication.
Specifications
Basic Information
- System Voltage: 12V/24V - 12V/24V
- Solar Input Voltage: 50 VDC
- Output Voltage: 9-32 VDC
- Alternator Input: 9-32 VDC
- Maximum Output Current Rating: 12V@50A ; 24V@25A
- Output Power: 720W
- Battery Types: AGM/SLD , GEL ,FLD ,LI,USER
- Input Fuse Rating: 75A-100A
- Output Fuse Rating: 75A-100A
- MPPT Tracking Efficiency: 99%
- MPPT Charging Efficiency: 97%
- Conversion Efficiency: 94%
- Temperature Compensation: -3mV / ℃ / 2V (Non-Lithium) and 0mV / ℃ / 2V; no compensation (Lithium)
- Idle Power Consumption: ＜100mA
General Data
- Model: RBC2125DS
- Terminal Range: 8AWG-4AWG
- Communication Protocol: Modbus ; RV-C
- Operating Temperature Range: -31℉ to 176℉/-35℃ to 80℃
- Storage Temperature Range: -40℉ to 176℉/-40℃ to 80℃
- Humidity: 0%-95%, No Condensation
- Maximum Operating Altitude: 3500m
- Enclosure Rating: IP67
- Dimensions: 7.01 x 4.78 x 1.47 in/178.2 x 121.5 x 37.5mm
- Weight: 4.10 lb / 1.86 kg
- Certification: UL1741;CE;RoHS;FCC Part 15 class B
- Protection: Reverse Polarity Protection/Overvoltage Protection/Over Discharge Protection/Overcurrent Protection/Over Temperature Protection/Overcurrent Protection
Warranty Information
- Material and workmanship warranty: 3-year material warranty
