12V 50Ah Core Series Deep Cycle Lithium Iron Phosphate Battery

Description

• Enhanced Power with 4S4P Configuration: 10.24kWh Expansion.

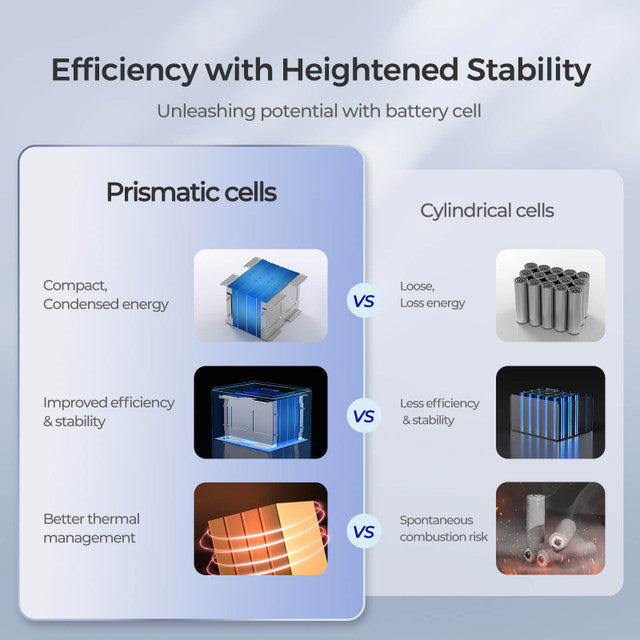

• Square Core & Class A Cells for Condensed Energy Storage.
• Durable Performance with 3500-5000 Life Cycles (80% DOD).

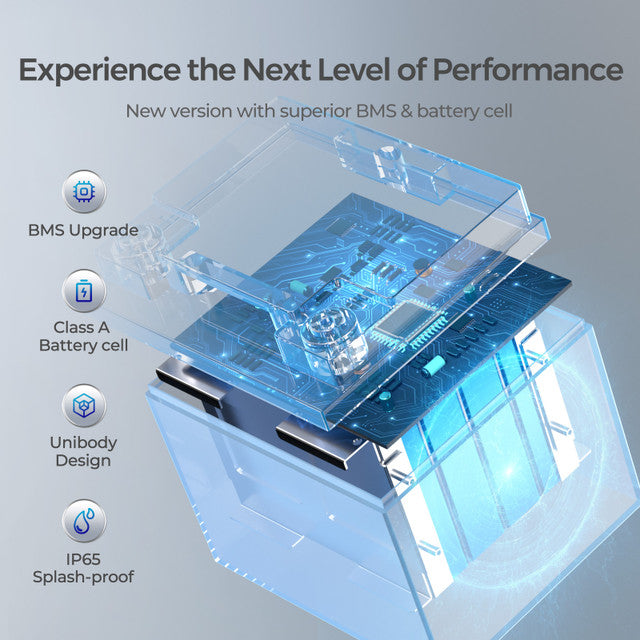

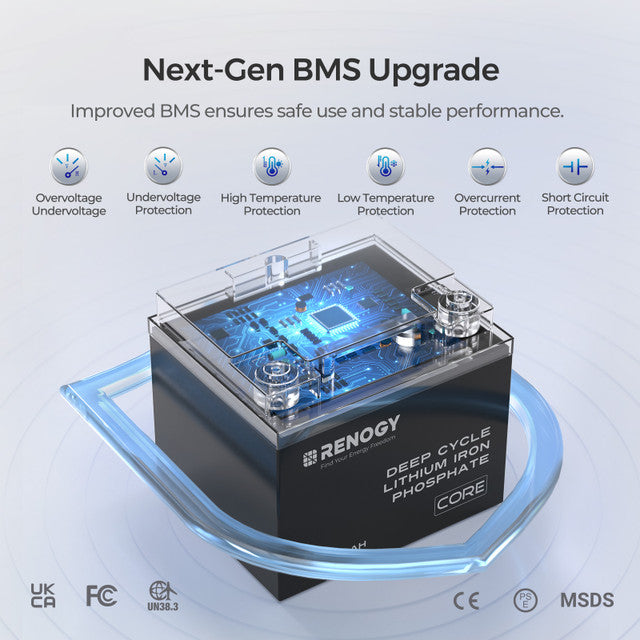

• Advanced BMS Upgrade for Safety and Efficiency, MSDS, UN38.3, FCC, CE, UKCA, PSE.
• Portable and IP65 Water-Resistant Protection.

Specifications

• Rated Capacity: 50Ah
• Nominal Voltage: 12.8V
• Voltage Range: 10-14.8V
• Energy: 640WH

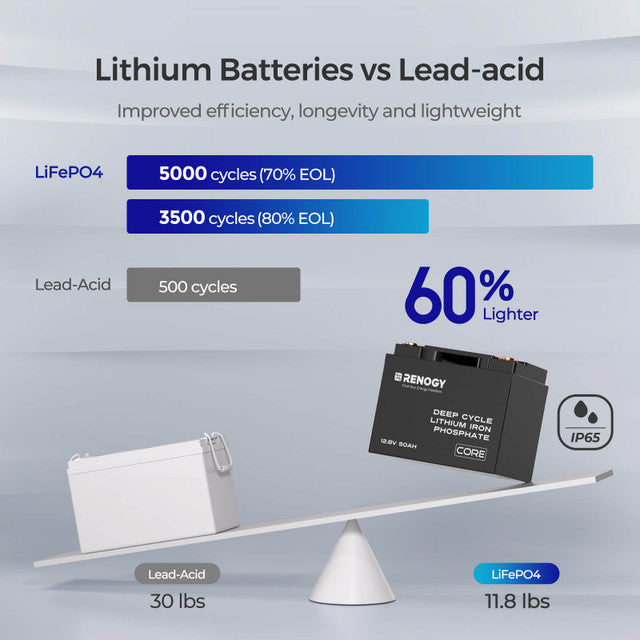

• Cycle Life(0.5C/25℃): 3500 Cycles (80% DOD, 80% EOL)

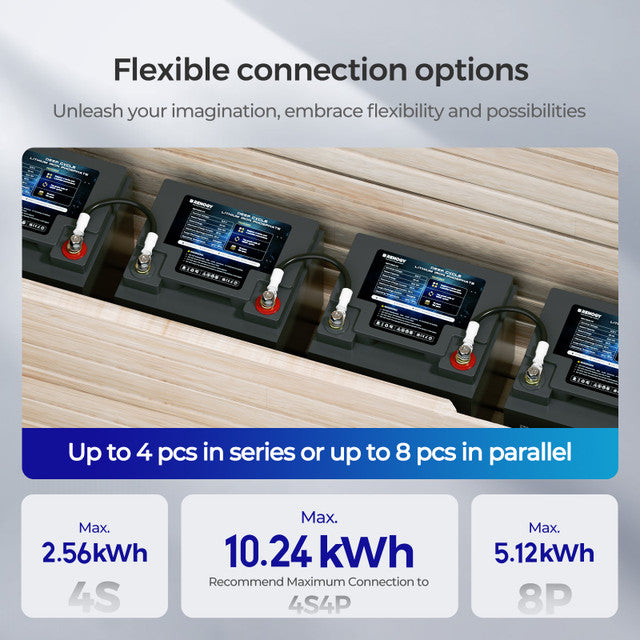

• Connection Method: Series （Up to 4）& Parallel (Up to 8)
• Automatically Self-heating Function: No

• Dimensions(L x W x H): 7.8*6.5*6.7in/198*165*169mm
• Weight: 11.77lbs./5.35Kg
• Protection Rate: IP65
• Housing Material: ABS+PC

Charging Parameters

• Charge Voltage: 14.4V
• Maximum Continuous Charge Current: 50A
• Charge Cut-off Voltage: 14.6V

• Maximum Continuous Discharging Current: 50A
• Peak discharge current: 100A
• Discharge Cut-off Voltage: 10V

• Standard Operation Temperature: 73.4 ± 9℉ / 23 ± 5℃
• Storage Temperature: -25°C-65°C/ -13℉~149℉
• Charge Temperature: 0°C-55°C/32℉~131℉
• Discharge Temperature: -20°C-60°C/ -4℉~140℉

• Built-in Bluetooth: No
• Communication Port: No

• M8 Bolts: M8 ×2
• Activation Switch: No

• Material and workmanship warranty: 5-year

• MSDS、UN38.3、FCC、CE, UKCA, PSE
