2000W 24V Pure Sine Wave Inverter
$309.99
Taxes included.
Description
Description
Description
- Reliable power conversion with comprehensive equipment protection.
- Compact and lightweight inverters offer portability, space savings.
- Achieves over 92% energy efficiency with clear power output.
- Effortlessly monitor your inverter with the user-friendly remote control switch.
- Versatile adaptability for diverse equipment with 2 AC outputs and a terminal block.
Specifications
General Data
- AC Terminals: 2 x AC Sockets + Terminal Block
- DC Terminals: M8-1.25x25
- Operating Temperature: -4°F-131°F/-20℃ ~ 55℃
- Storage Temperature: -40°F-158°F/'﹣40℃～70℃
- Humidity: Max 95%, Non-condensing
- Cooling: Thermally Controlled Fans
- Enclosure Rating: IP20

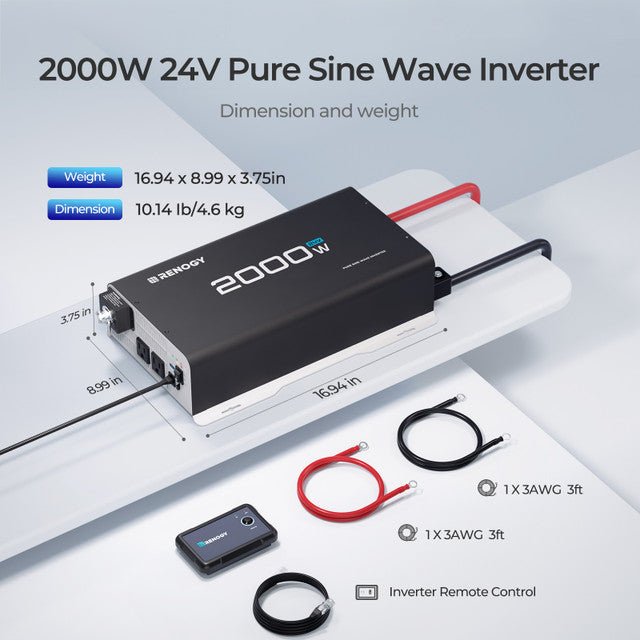

- Dimensions (LxWxH): 16.94 x 8.99 x 3.75in / 430.3 x 228.4 x 95.3 mm
- Weight: 10.14Ib/4.6kg
- Output Waveform: Pure Sine Wave
Electrical Data
- Continuous Output Power: 2000W
- Continuous Output Current: 16.6A AC
- Total Harmonic Distortion (THD): <3%
- Power Factor: 1
- Surge Rating: 4000W (@ 2s)
- Output Voltage: 120V AC±3%
- Output Frequency: 50/60Hz
- Rated Battery Input Voltage: 24VDC
- Battery Input Voltage Range: 23-30.7VDC
- Maximum Continuous Battery Output Current: 106A

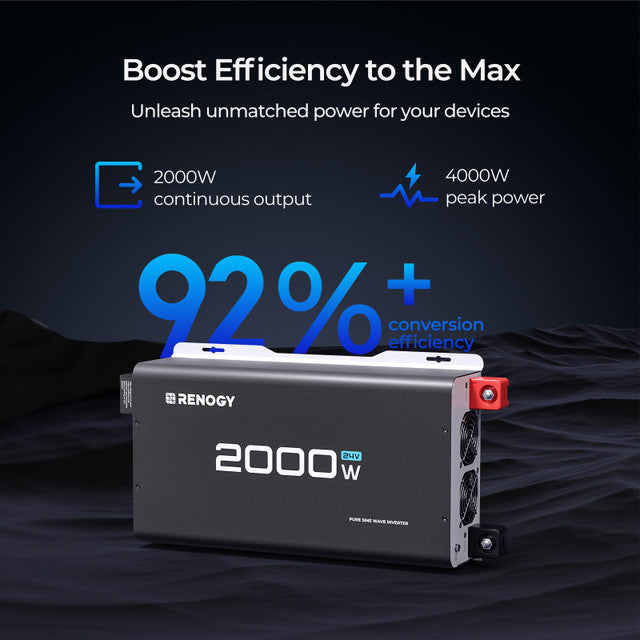

- Inverter Efficiency: max 92%
- Full Load Efficiency: 89%
- Power Consumption: <19.2W
- Battery Overoltage Shutdown: 33.3VDC±0.5VDC
- Battery Low Voltage Alarm: 22.4VDC±0.5VDC
- Battery Low Voltage Shutdown: 21.8VDC±0.5VDC
Wired Remote Data
- Front Plate Dimensions: 4.3x2.6x1.3 in /110x70x31.8mm
- Wired Length: 16.40ft
Standard
- EMC: FCC Part 15 ClassB
- Safety: UL458 (including Marine supplement) /CSA-C22.2 No 107.1
- Warranty: 1 Year
