24V 25Ah Lithium Iron Phosphate Battery

Description

• Exceptional lifespan with more than 2000 cycles (80% DOD), 4 times of lead-acid battery. Wide discharging temperature range from -4°F to 140°F, IP65 waterproof. Fearless of extreme climates, back up your wild adventures.

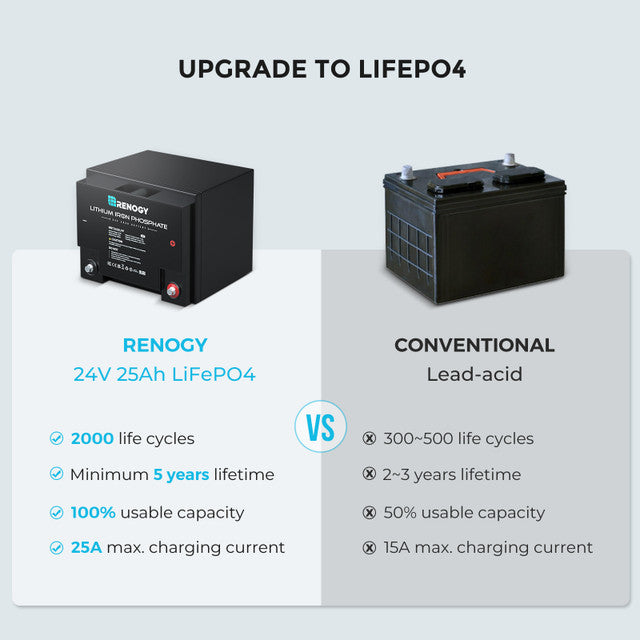

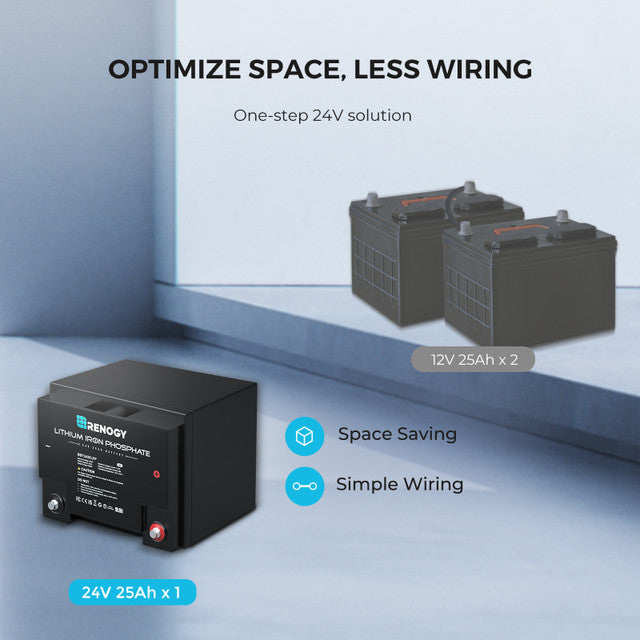

• A space-saving choice for your 24V power system. Upgrades from lead-acid to lithium seamlessly with a greater energy density, 100% usable capacity, and a faster-charging speed.

Specifications

• Battery Type: Lithium Iron Phosphate
• Rated Capacity: 25Ah
• Nominal Voltage: 25.6 V
• Voltage Range: 20-29.6V
• Energy: 640Wh
• Cycle Life(0.5C,25℃): 2000 Cycles at 80% DOD

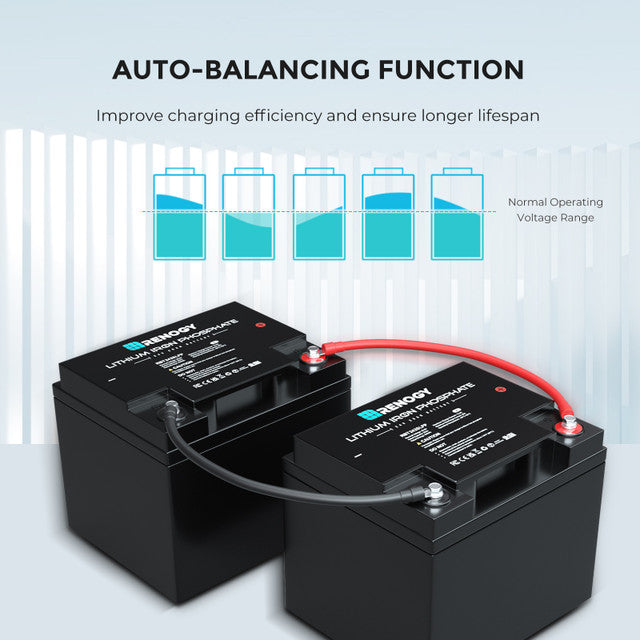

• Connection Method: Parallel (Up to 8)
• Automatically Self-heating Function: No

Mechanical Specifications

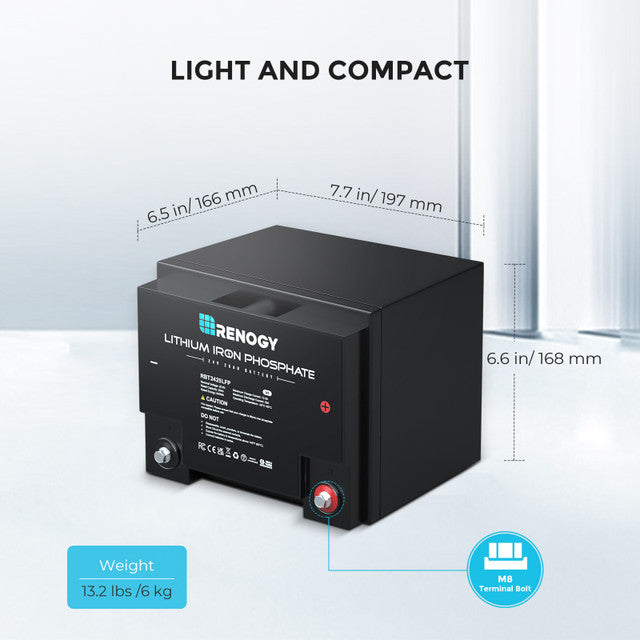

• Dimensions: 7.7 x 6.5 x 6.6 in / 197 x 166 x 168 mm
• Weight: 13.2 lbs. (6 kg)
• Protection Rate: IP65
• Housing Material: ABS

• Charge Voltage: 29.0 ± 0.2V

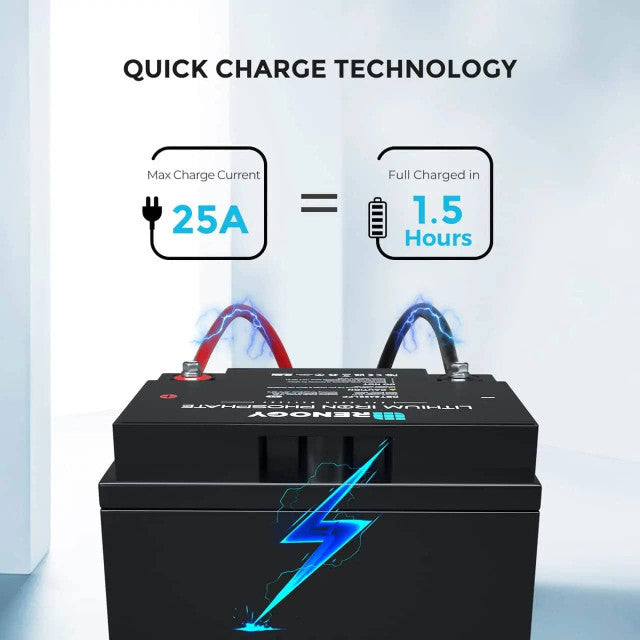

• Maximum Continuous Charge Current: 25A
• Charge Cut-off Voltage: 29.2V

• Maximum Continuous Discharging Current: 25A
• Discharge Cut-off Voltage: 20V

Temperature Parameters

• Standard Operation Temperature: 73.4 ± 9℉ / 23 ± 5℃
• Storage Temperature: Less than 1 year: 32~77℉ / 0~25℃, Less than 3 months: 14~95℉ / -10~35℃
• Charge Temperature: 32~131℉ / 0～55℃

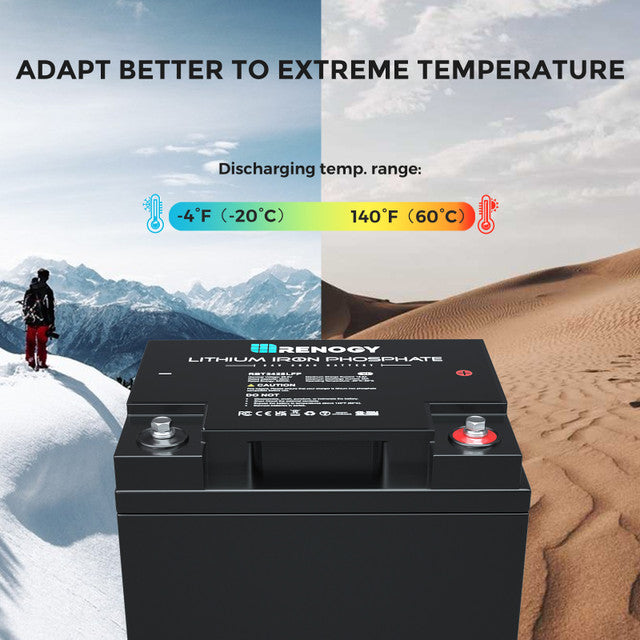

• Discharge Temperature: -4~140℉ / -20～60℃

Communication

• Built-in Bluetooth: No
• Communication Port: No

Accessories

• Bolts: M8 x 2
• Activation Switch: No

• Material and workmanship warranty: 3-Year

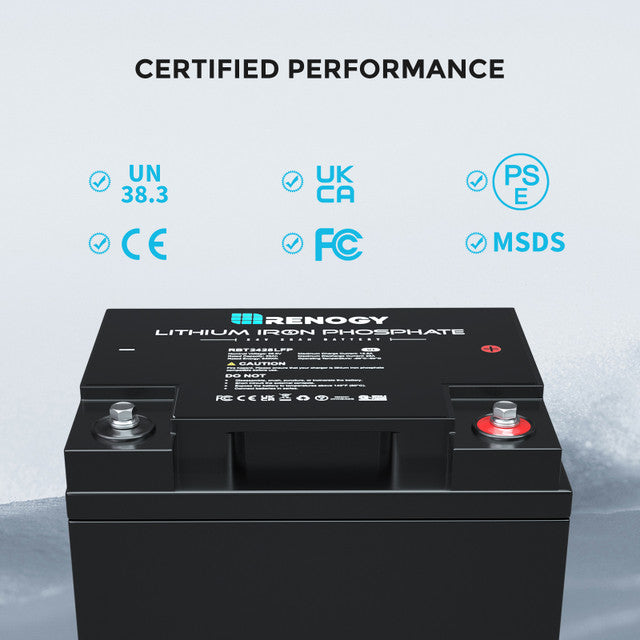

• Certifications: MSDS, UN38.3, FCC, CE, UKCA, PSE
