Renogy 3000W 12V Pro Pure Sine Inverter | EcoSleep Mode – Praetorian Consulting Store

$0

Taxes included.

Quantity

Payment methods

Description

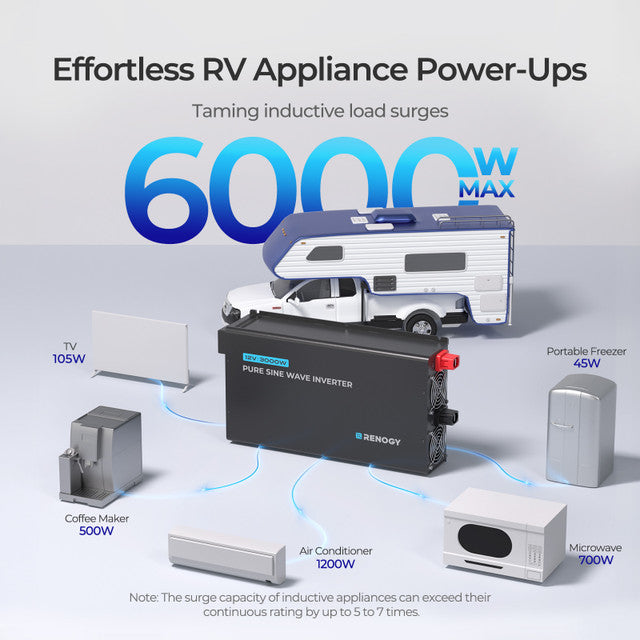

Continuous power 3000W,peak power boosts to 6000W for inductive loads, THD < 2%

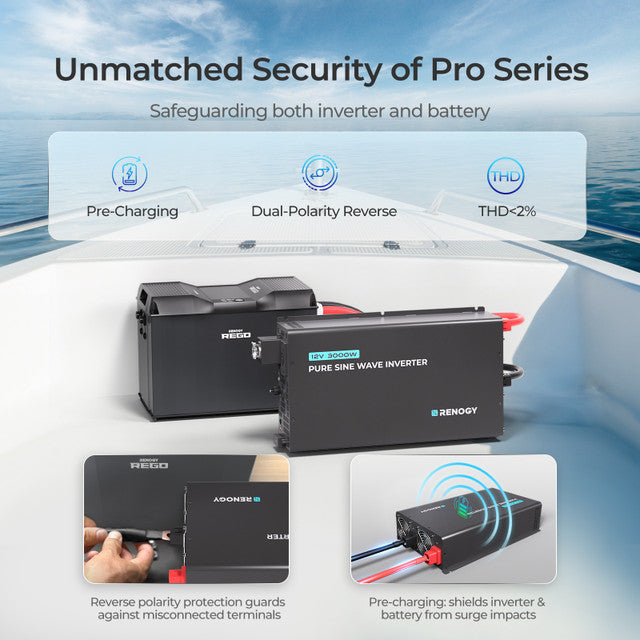

Pre-charging, safeguarding battery from peak current surges.
Dual-polarity reverse connection(RC)protection, guards against misconnection damage.

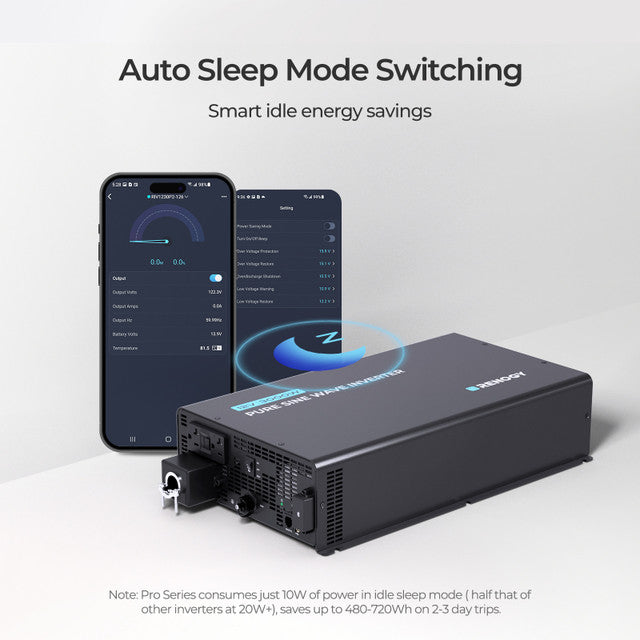

Intelligent ecosleep mode conserves energy, idle consumption < 10W.
Bluetooth & RV-C (with Renogy M1) for real-time monitoring, with 3-year warranty.

Specifications

Inverter Specifications

Rated Output Power: 3000W
Surge Power (100ms): 6000W
Nominal output Voltage RMS: 120Vac ±3%
Outuput Frequency: 60Hz ± 0.3Hz
Output Wave Form: Pure Sine Wave
AC Output Sockets: 2* AC Sockets + 1 DIY AC Terminal
Nominal Input Voltage: 12 VDC
Input Voltage Range: 11-15.5Vdc
Peak Efficiency: ≥90%
Full-load Efficiency: ≥87%
Short Circuit Protection: Software Protection
THD: ＜3% （Resistance load）
No load power Consumption（Sleep）: Normal:<10 W
Overload Capacity: ≥1min @120%; ≥5s @150%; ≥100ms @200%

General Specifications

Communication: RS485 /RV-C
Mobile APP: Yes
Display Control Panel: Renogy one Core
Battery Types: GEL, AGM, SLA, FLD, LI
Operating Temperature Range: Full load: -20℃ ~ 40℃; Down load: 40 ℃~ 50 ℃
Storage Temperature: ﹣40℃～70℃
Humidity: 0% ~ 95%
Noise: <55dB

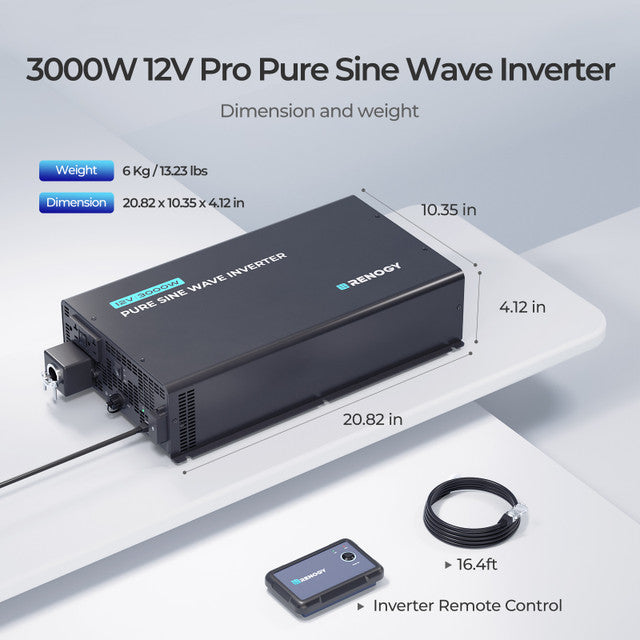

Dimensions: 20.82 x 10.35 x 4.12 in
Weight: 6 Kg (13.228lb)

Wired Remote Control

List dimensions: 2.8 x 4.3 x 1.3 in / 70 x 110 x 31.8 mm
Wire length: Approx 16.4ft

Standard

EMC: FCC Part 15 ClassB
Safety: UL458 (including Marine supplement) /CSA-C22.2 No 107.1
Warranty: 3 Years
