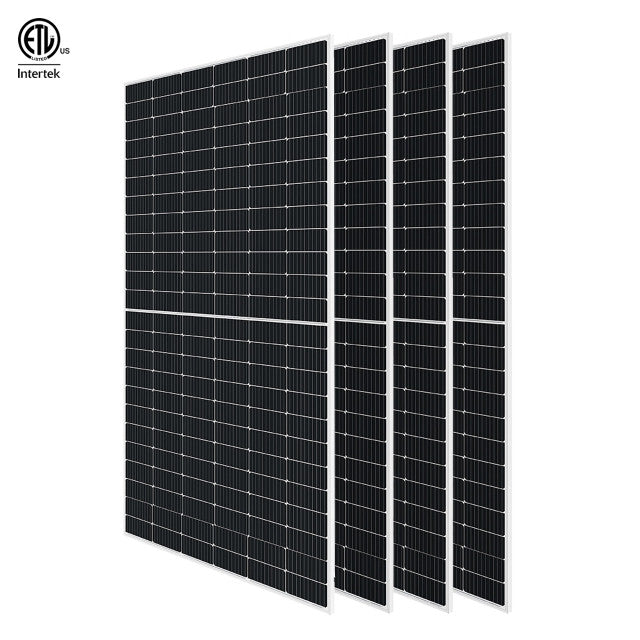

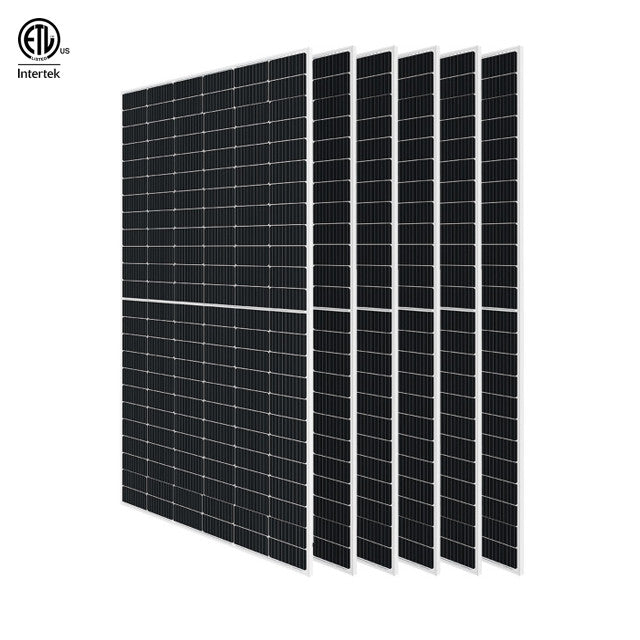

550 Watt Monocrystalline Solar Panel Kit
$919.99
Taxes included.
Quantity:
2 Pieces
Description
Description
Description

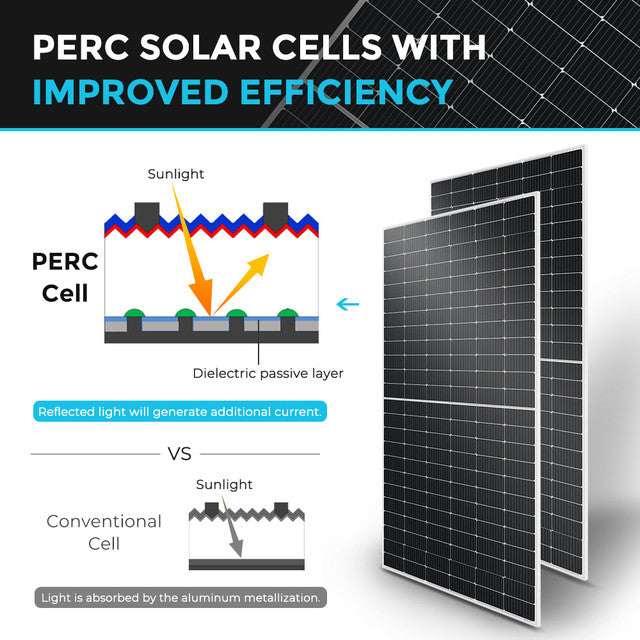

- Engineered with high-efficiency PERC cells

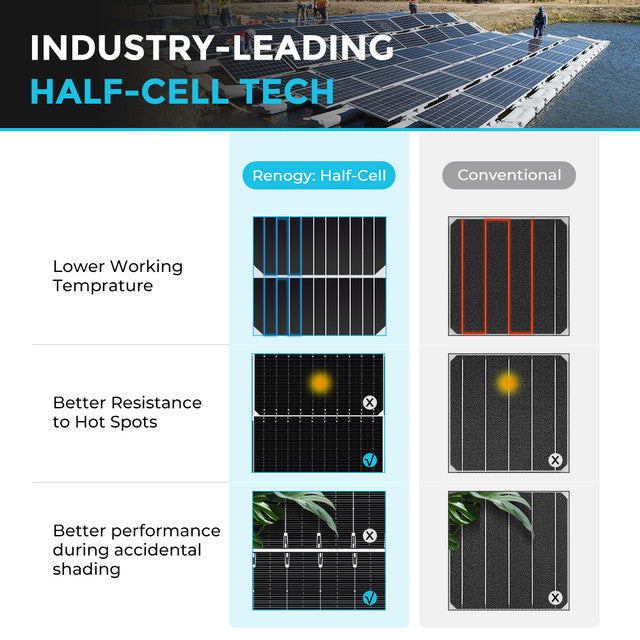

- This half-cut panel performs excellently in low light situation
- Space and Installation Optimization

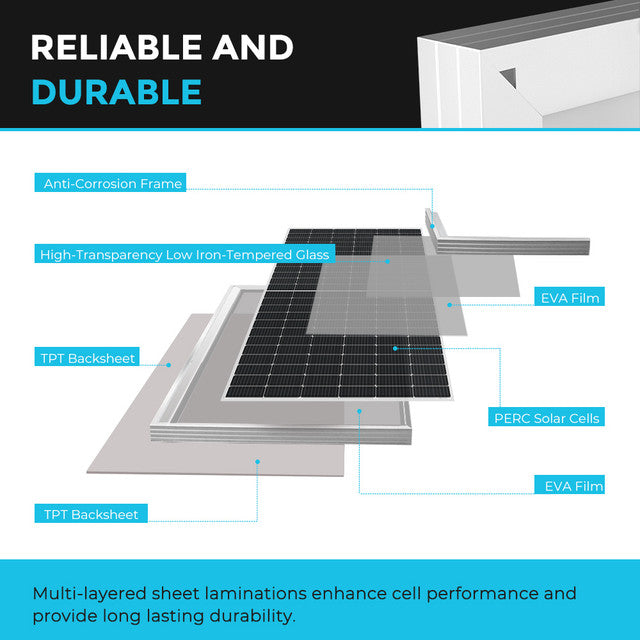

- Corrosion-resistant aluminum frame provides extended outdoor use
- Claim up to 30% of your home's new solar system costs
Specs
Built-In Components:
- Output Cables: 12 AWG (1ft per cable)
- Cell Type: PERC Monocrystalline (7.2 x 3.6 in)
- Number of Cells: 144 (6 x 24), 72 cells in series
- Junction Box: IP65 / IP68 (1m, 1h) rating
- MC4 Solar Connectors: IP65 / IP68 (1m, 1h) rating
Specifications:
- Maximum Power at STC: 550W

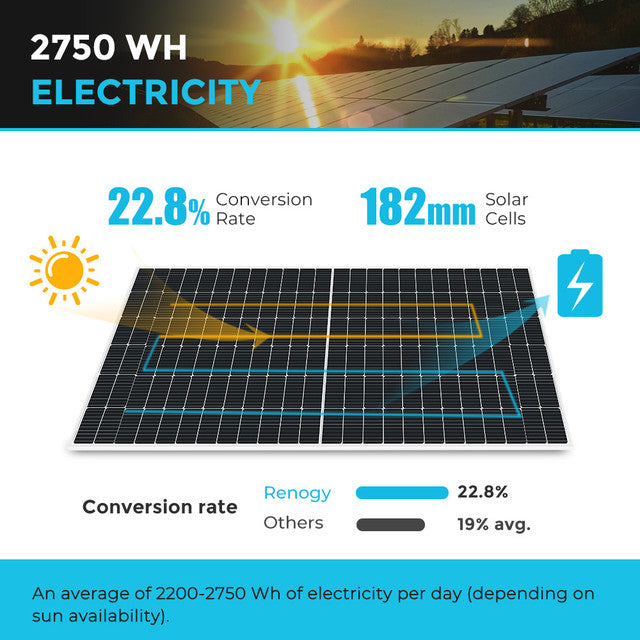

- Cell Efficiency: 22.8%
- Optimum Operating Voltage (Vmp): 41.97V
- Open-Circuit Voltage (Voc): 49.95V
- Optimum Operating Current (Imp): 13.11A
- Short-Circuit Current (Isc): 14.05A
- Operating Temperature: -40°F to 185°F
- Maximum Series Fuse Rating: 25A
- Maximum System Voltage: 1500V DC (UL)
- Rated Current (MC4 Solar Connectors): 35 A
- Weight: 62.8 lbs (28.5 kg)

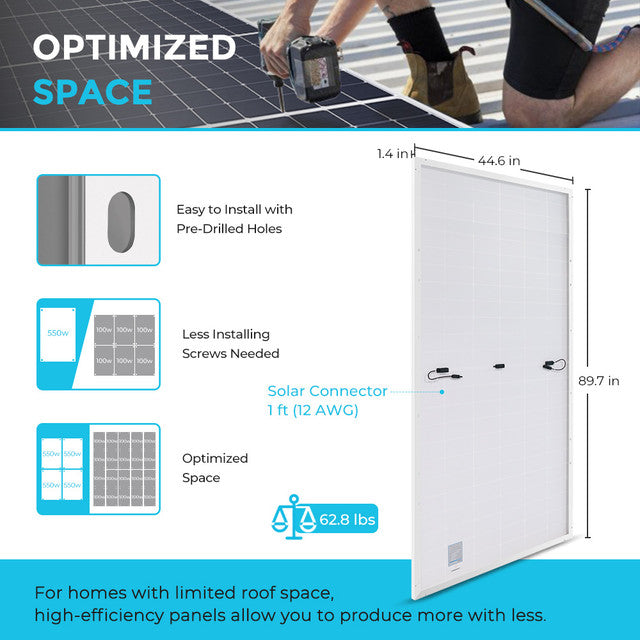

- Dimensions: 89.7 x 44.6 x 1.4 in (2279 x 1134 x 35 mm)
- Maximum AWG Size Range (MC4): 10 AWG
- Certifications: CE, ISO, ETL
- Material and workmanship warranty: 10 year material and workmanship warranty
- Performance: 5 year 95% output warranty 10 year 90% output warranty 25 year 80% output warranty
