Description
• Efficiency exceeding 90% with a peak surge of 1400W.

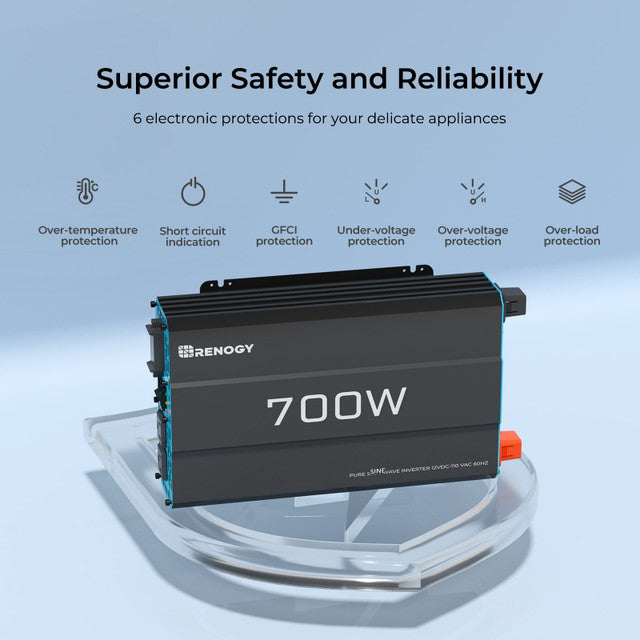

• Comprehensive electronic protections for enhanced safety.

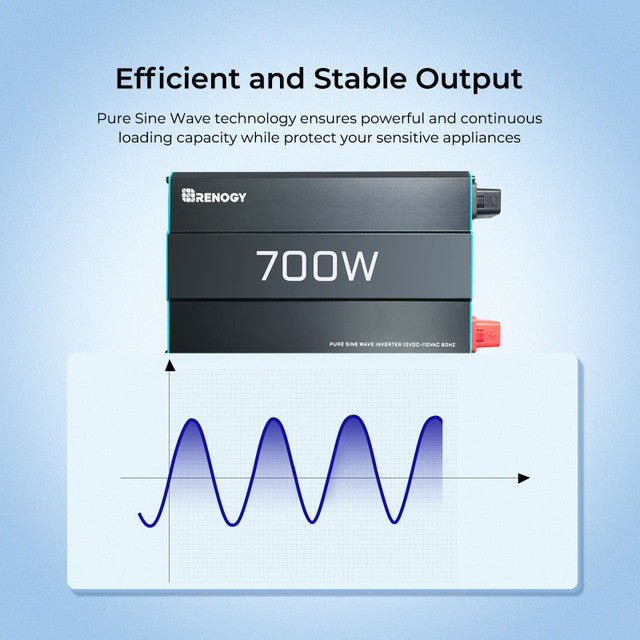

• Pure sine wave technology delivers high-quality AC power.

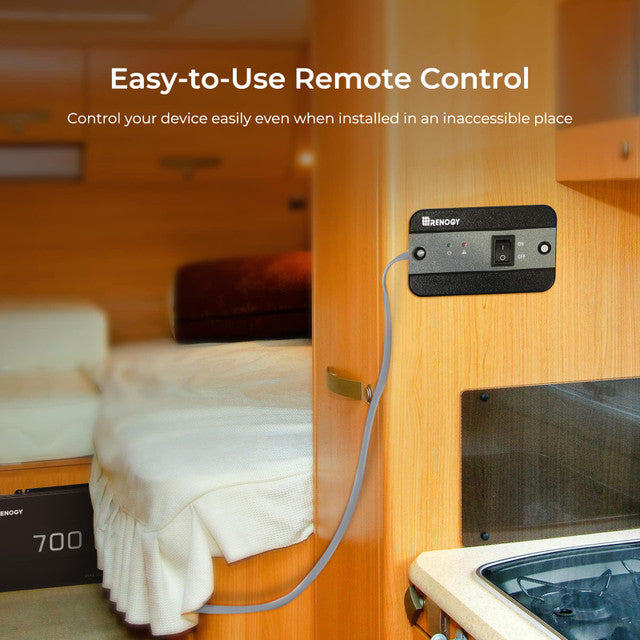

• User-friendly remote control and multiple outlets.
• ETL certified for guaranteed safety and quality assurance.
Specifications
Inverter Output Specifications
-
Continuous Output Power: 700W
-
Peak Power Rating: 1400W
-
Output Voltage: 120V
-
Output Frequency: 60 Hz ± 0.1%
-

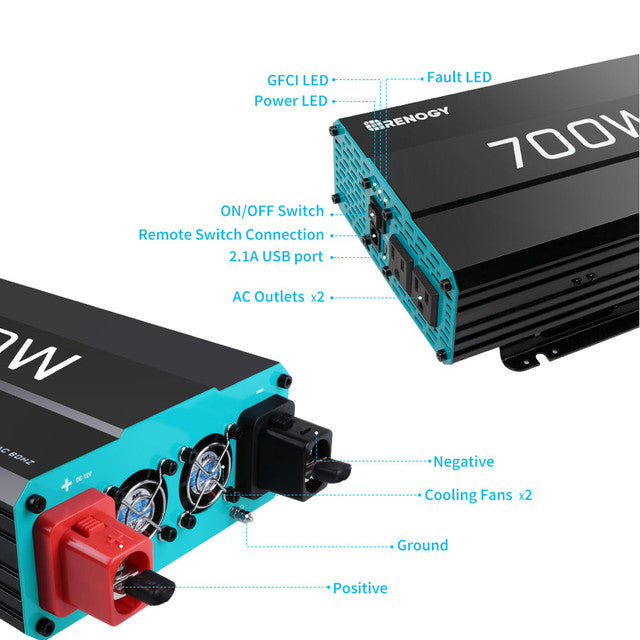

AC Output Sockets: 2
-
USB Power Port: 5V/2.1A
-
Power Output Control: AC On/Off Switch, and Remote Control
-
Output Waveform: Pure Sine Wave
-
Nominal Efficiency: > 90%
-
Total Harmonic Distortion (THD): < 3% Linear Load < 5% Non-linear Load
Mechanical Specifications
-

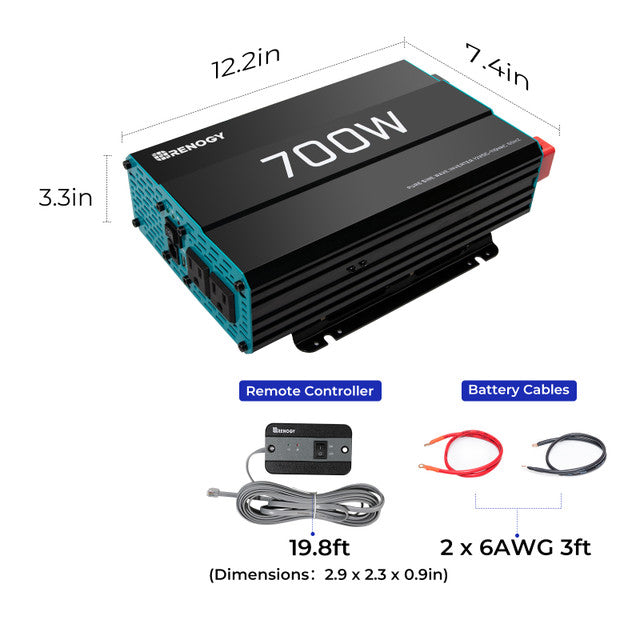

Dimensions: 12.2 x 7.4 x 3.3 in
-
Weight: 5.6 lb
-

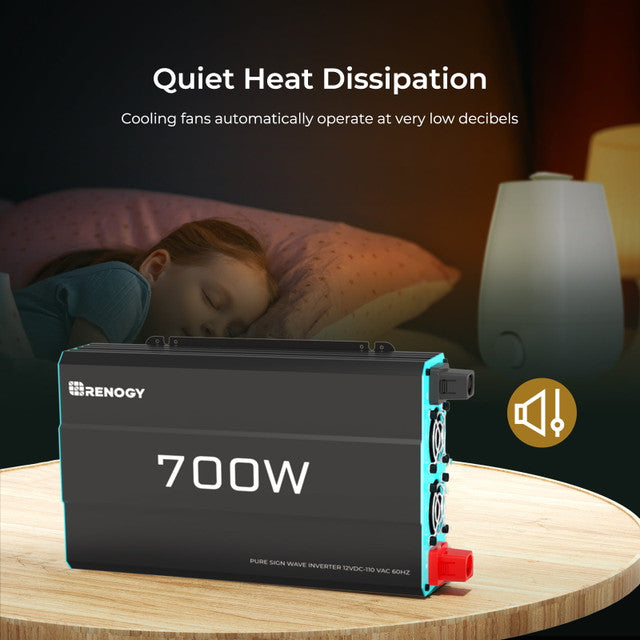

Cooling Fan: Thermally controlled
-

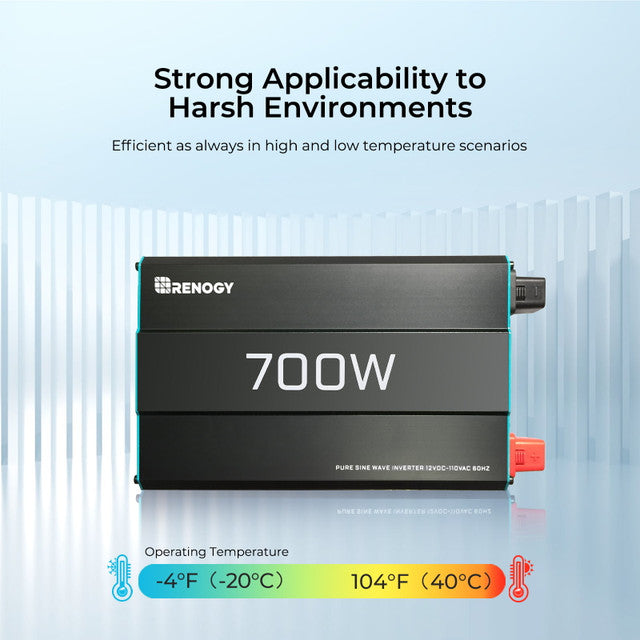

Operating Temperature Range: -4°F - 104°F
Input Specifications
-

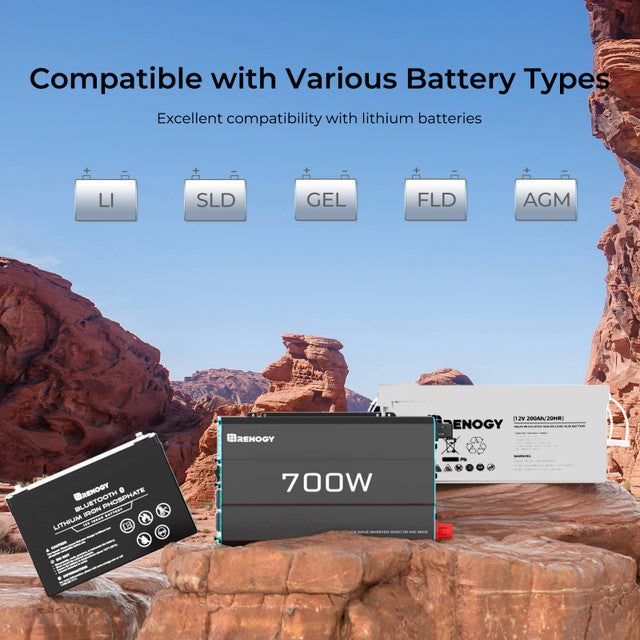

Nominal Input Battery Voltage: 12V
-
Battery Terminal Size: M8
-
Low Battery Alarm: 10.5V ± 0.5V DC
-
High Voltage Alarm: 16V
-
Battery Low Shutdown: 10.0V ± 0.5V DC
-
Over Voltage Shutdown: 16.5V ± 0.5V DC
-
No Load Current Draw: < 0.8A
Accessories
-
Cable: 6AWG 3ft
-
Inverter Remote Control: 19.8 Ft
Certifications
-

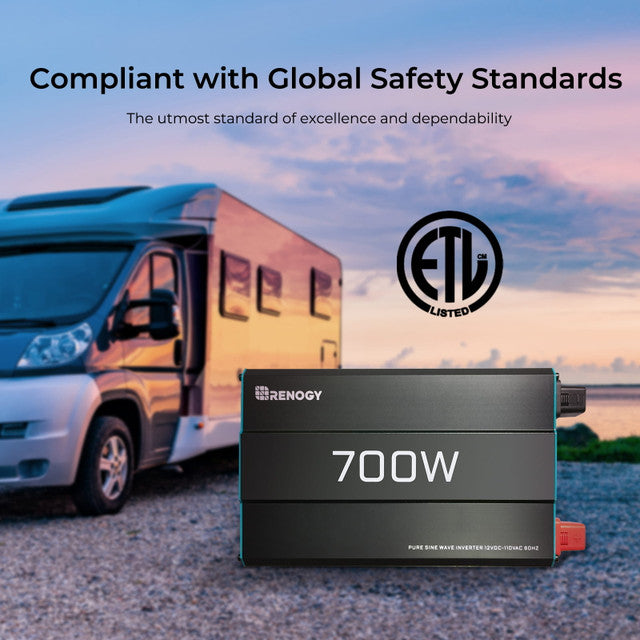

ETL Listed to UL 458 and CSA 22.2 NO 107.1-01: YES
-
FCC Part 15 class B: YES
Warranty
-
Material and workmanship warranty: 1 Year
