REGO 3000W 12V Pure Sine Wave HF Inverter Charger Split-phase Design

Description

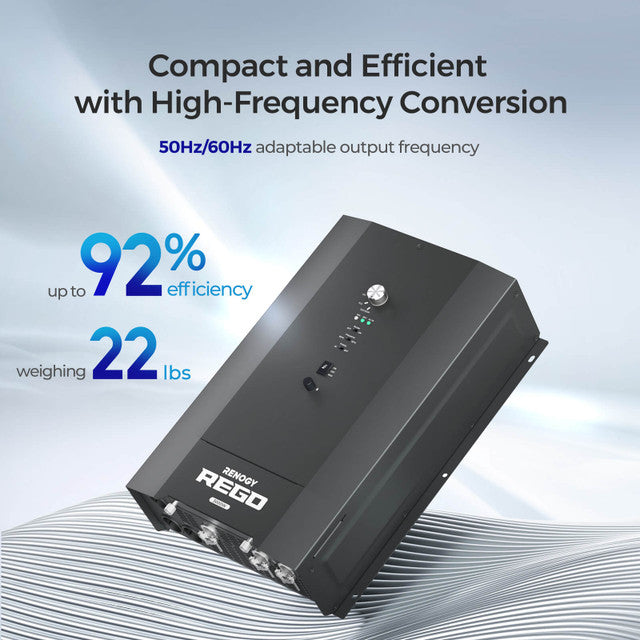

• High-frequency inverters feature lightweight design and minimal noise.
• Split phase output is only available by split phase AC input.
• Output of up to 6000W in grid-connected scenarios.

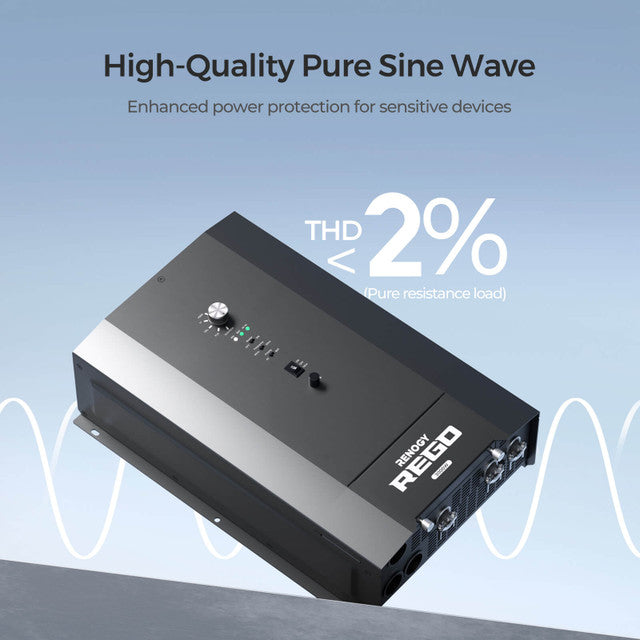

• Quality pure sine wave delivers consistent, smooth power.
• Built-in BT makes it compatible with Renogy ONE M1 & Core.

Specifications

• Continuous Power: 3000W
• Surge Power(100ms): 9000VA
• Surge Power(5 seconds): 4500VA
• Surge Power (10 seconds): 3600W
• AC Output Voltage Range: 120V± 3%
• Output Frequency (Nominal): 50/60 Hz ± 0.1%
• Output Waveform: Pure Sine Wave
• Efficiency: ＞92%
• THD: ＜3%
• DC Input Voltage: DC12V
• DC Input Voltage Range: 9~17Vdc(Full load 11V to 15.8V DC)
• No Load Current Draw: Normal: <20W; Power Saving: <10W

• Output Current: 150A @25°C, 5A to 150A adjustable, 5A intervals, default 150A
• Optimal Efficiency: >90%
• Nominal Input Voltage: Split phase: 180-280 VAC; Single phase: 90-140 VAC
• Input Frenquency Range: 50/60Hz，±5Hz
• Input Wave Form: Sine Wave (Utility or Generator)

• Transfer Time: ~ 10ms
• Transfer Rating: 50A Maximum Bypass @120V AC

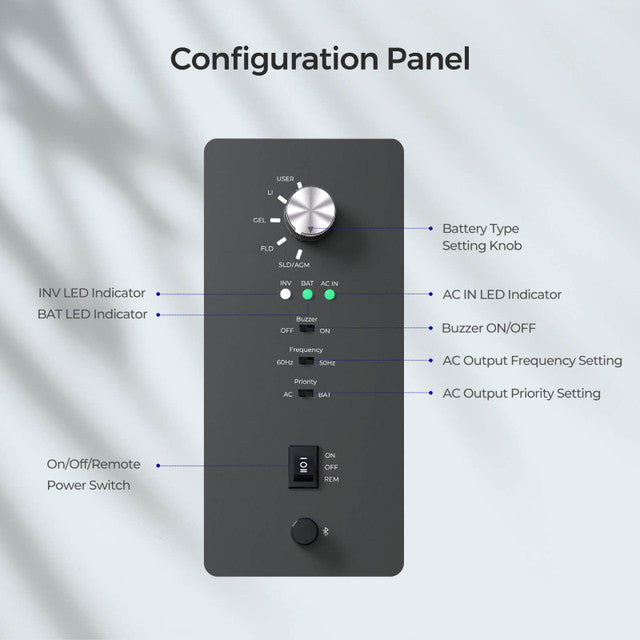

• Battery Types: GEL, AGM, SLA, FLD, CAL, LI, USER
• Noise: <47dB
• Operating Temperature: Full load: -4°F to 113°F / -20°C to 45°C; Down load: 113°F to 140°F / 45°C to 60°C

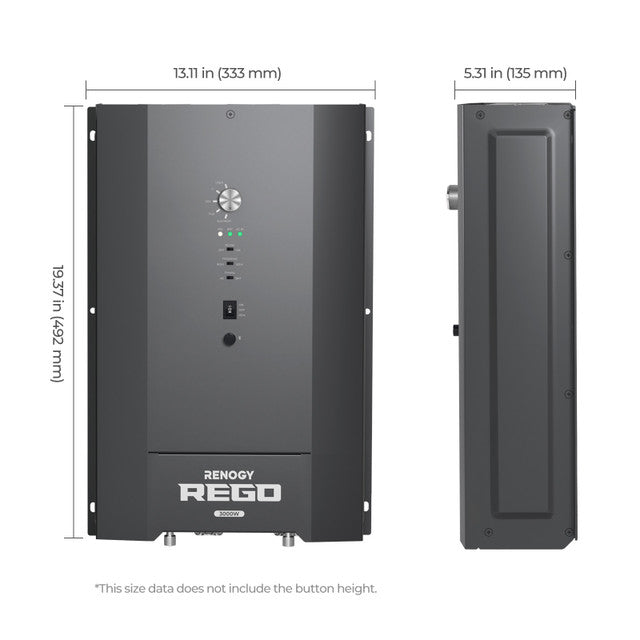

• Dimensions: 19.37 x 13.11 x 5.31 in / 492 x 333 x 135 mm
• Storage Temperature: -40 ~ 70°C / -40 ~ 158°F
• Weight: 22.7lbs/10.3Kg
• Humidity: 0% ~ 95%

• Dimensions: 2.8 x 4.3 x 1.3 in / 70 x 110 x 31.8 mm
• Wire length: Approx 16.4ft

• Inverters: 5 years
• Accessoreis: 1 Year

• EMC certification: FCC Prat15 Class B
• Safety: UL 485 and CSA C22.2 No 107.1
